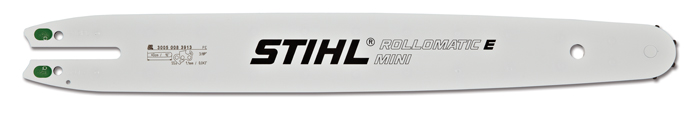

STIHL ROLLOMATIC® E Mini Light
The STIHL ROLLOMATIC® E Mini Light is a general-grade laminated guide bar made of high-grade steel.
The STIHL ROLLOMATIC® E Mini Light is a general-grade laminated guide bar made of high-grade steel. Two metal plates are electrically welded together to provide stability. To reduce weight, it is completely hollowed out after being welded and is filled with fiber-reinforced polymide. The 14” bar is 25% lighter than a comparable conventional guide bar. This bar has excellent rigidity for efficient cutting and better balance during limbing operations and is designed for use with PMM3 saw chain. A sprocket is incorporated in the nose of the bar that carries the saw chain from the top to the bottom of the bar. This not only reduces wear, but also enables the bar nose to be made considerably narrower. This type of construction is an advantage where extensive use is made of the bar nose (i.e. limbing and boring). All STIHL ROLLOMATIC® bars designed with a narrow nose help reduce kickback tendencies. And the star-shaped sprocket can be replaced several times before the whole bar is due for replacement, increasing the bar’s service life.
Applications: This bar is primarily intended for use by arborists.
STIHL recommends using low-kickback, green-labeled chain and green-labeled reduced-kickback bars on all powerheads.
Note: The actual listed guide bar length can vary from the effective cutting length depending upon which powerhead it is installed.
| STIHL ROLLOMATIC® E Mini Light Specifications | |
| AVAILABLE LENGTHS | E Mini Light available in 10" (3005 008 7603), 12"(3005 000 7605) and 14" (3005 000 7609). |
Important Information
IMPORTANT SAFETY INFORMATION
The occurrence called “kickback” can cause serious
or fatal injury. Always read the instruction manual carefully before
using your saw. STIHL uses a green and yellow color-coding
system to help you select a powerhead, bar and chain combination
that complies with the kickback requirements of ANSI
Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/
ANSI Standard B175.1 (electric chainsaws). Ask your STIHL
dealer about safe operating procedures and the advantages of
the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback
saw chains.
STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
* The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
