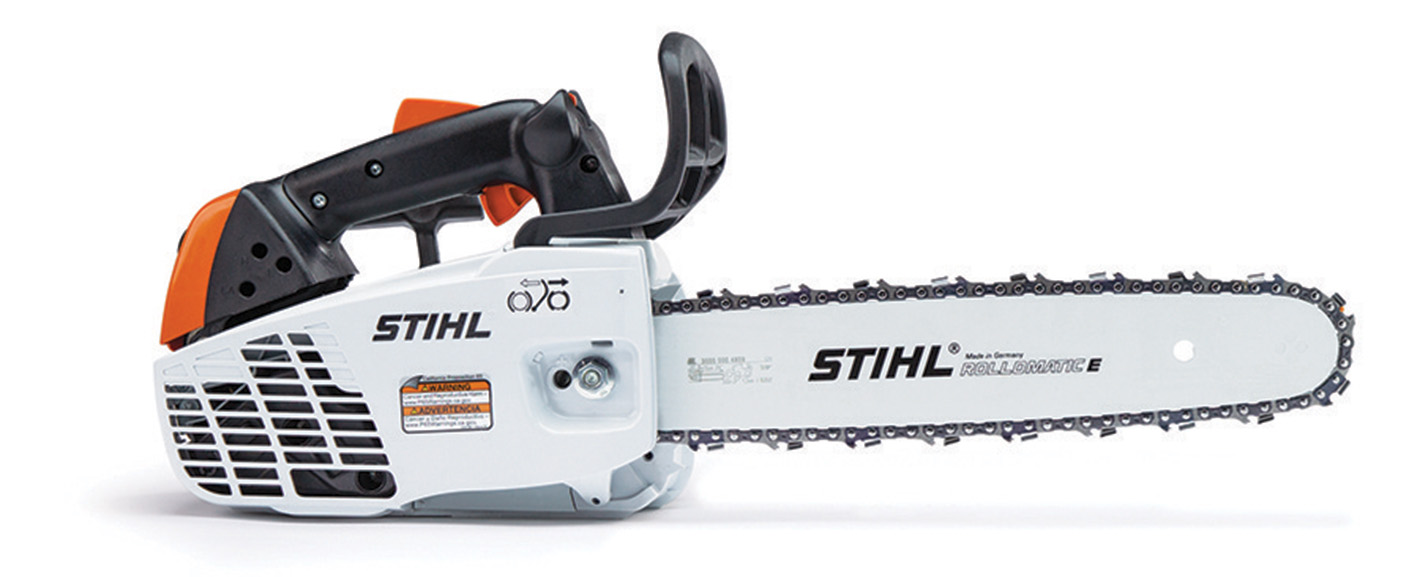

MS 194 T
A compact arborist chainsaw at an affordable price.
With its exceptional power-to-weight ratio, the MS 194 T packs professional-grade performance into a compact and lightweight body. Its efficient, low-emission engine delivers excellent fuel economy, allowing users to save money on gas and save time on refueling. One-touch stop allows users to turn off the engine with the press of a button, which saves time and reduces the chance of flooding when restarting. Dependable and hardworking, the MS 194 T also includes a diagnostic port, making it easy to identify and service.
| MS 194 T Specifications - Professional In-Tree Use Only | |
| POWER SOURCE | Gas |
| POWERHEAD WEIGHT | 7.28 lbs. |
| GUIDE BAR LENGTH (Recommended) | 14 in. |
| OILOMATIC® CHAIN | 3/8" PM3 |
| CHAIN OIL CAPACITY | 7.4 oz. |
| ENGINE POWER | 1.88 bhp |
| FUEL CAPACITY | 9.1 oz. |
| DISPLACEMENT | 31.8 cc |
| Note: This product is for professional use only. STIHL recommends 3610 005 0050 (61 PM3 50) OILOMATIC® Saw Chain and 14” 3005 008 3909 Ematic™ guide bar combination. Compatible guide bar ranges: 12" to 16" | |
Important Information
IMPORTANT SAFETY INFORMATION
The occurrence called “kickback” can cause serious
or fatal injury. Always read the instruction manual carefully before
using your saw. STIHL uses a green and yellow color-coding
system to help you select a powerhead, bar and chain combination
that complies with the kickback requirements of ANSI
Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/
ANSI Standard B175.1 (electric chainsaws). Ask your STIHL
dealer about safe operating procedures and the advantages of
the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback
saw chains.
STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
* The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
Model Features
-
Purge Pump Primer
The purge pump primer feature enables the user to prime the carburetor with fuel, enabling easier starting. The purge pump primer is designed in a way that the operator cannot flood the machine by priming the carburetor too many times. Flooding the engine is still possible if the choke is not removed after the engine turns over.
See it in action! -
Side-Access Chain Tensioner
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw. -
Built-in retractable carry ring
The built-in carry ring makes it convenient and easy to maneuver in and out of trees. -
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box. -
Master Control Lever™
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position. -
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%. -
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
See it in action! -
Top handle (T)
The top-handle model is specially designed for in-tree professional use only! -
Made in America
A majority of STIHL products sold in America are made in America of U.S. and global materials.
We Also Suggest
-
-
SPECIAL OFFER

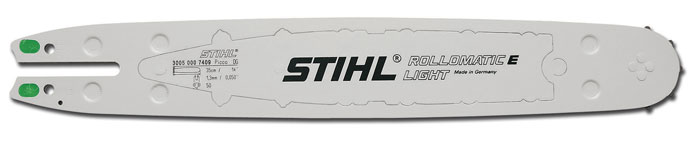

STIHL ROLLOMATIC® E Light
The STIHL ROLLOMATIC® E Light guide bar is a general-grade laminated guide bar made of high-grade steel. Two metal plates are electrically welded together to provide stability. To reduce weight, it is completely hollowed out after being welded and is filled with fiber-reinforced polymide, making this bar up to 38% lighter as compared to the STIHL ROLLOMATIC® E. This bar has excellent rigidity for efficient cutting and better balance during limbing operations. A sprocket is incorporated in the nose of the bar that carries the saw chain from the top to the bottom of the bar. This not only reduces wear, but also enables the bar nose to be made considerably narrower. This type of construction is an advantage where extensive use is made of the bar nose (i.e. limbing and boring). All STIHL ROLLOMATIC® bars designed with a narrow nose help reduce kickback tendencies. And the star-shaped sprocket can be replaced several times before the whole bar is due for replacement, increasing the bar’s service life.
Applications: This bar is primarily intended for use by arborists.
STIHL recommends using low-kickback, green-labeled chain and green-labeled reduced-kickback bars on all powerheads.
Note: The actual listed guide bar length can vary from the effective cutting length depending upon which powerhead it is installed.
-
-
-
SPECIAL OFFER
HP Ultra 2-Cycle Engine Oil
No matter how you slice it (or trim it or shred it), there’s no better protection for your high performance 2-stroke engine than STIHL HP Ultra Oil. This 2-cycle engine oil has outstanding engine cleaning characteristics, plus “ultra” lubricating qualities that are superior to other 2-cycle engine oils. This fully synthetic oil is also highly biodegradable, degrading by 80% in 21 days. We’re so confident this oil will protect your engine, we’ll double your STIHL limited warranty* when you use it. It’s that good.
*Double your warranty when you purchase either STIHL HP Ultra Oil (six pack) or STIHL MotoMix® Patented Premixed Fuel (one gallon minimum) with your STIHL product purchase. Double limited warranty protection applies to select STIHL gasoline-powered products purchased for personal non-income producing, household purposes only. Other restrictions apply. See dealer for details or refer to STIHL’s Limited Warranty Policy.
Unopened container shelf life: 4 years from the date of filling, in originally sealed containers.
-
-
-
SPECIAL OFFER
STIHL MotoMix®
STIHL MotoMix® is our patented premixed fuel, specially blended for ultimate performance. Like a sports drink for your engine, this 50:1 mixture is a combination of premium non-ethanol, high-octane motor fuel and our highest-quality STIHL HP Ultra Oil. Clean and convenient, MotoMix® eliminates the hassle of mixing your own 2-stroke engine fuel while providing superior performance and lubrication. Plus, we stand behind this formulation by doubling the limited warranty when you include MotoMix® with your power tool purchase. STIHL MotoMix® contains no ethanol, allowing it to maintain stability for up to two years after the seal is broken - so it stays fresh in your equipment during long storage periods. It’s no surprise that MotoMix® is the official fuel of the STIHL TIMBERSPORTS® Series.
-
-
-
SPECIAL OFFER
2 in 1 Filing Guide
The STIHL 2 in 1 Filing Guide simplifies the process of sharpening your saw chain by completing two functions at once – sharpening your saw chain cutters and lowering your depth gauges. The ease and accuracy of this unique accessory makes it the perfect system for maintenance of your STIHL chainsaw. The system includes two round files, one flat file, and comes with a unique file holder and filing guide. The STIHL 2 in 1 Filing Guide gets more done with each stroke, so you can spend less time sharpening your saw chain and more time putting your chainsaw to work.
-
For Your Safety
-
-
SPECIAL OFFER
Arborist Helmet
Designed specifically for tree service professionals, the STIHL Arborist Helmet is lightweight and features a six-point adjustable suspension for comfortable support. The helmet also includes multiple air vents to help keep you cool. The outer shell is made from lightweight ABS thermoplastic, while its inner shell is heavy-duty, anti-bacterial polystyrene with replaceable liner. Helmet includes mounts for optional visors and various hearing protectors.
Meets ANSI Z89.1-2009 Standard
-
-
-
SPECIAL OFFER
Black Work Glasses
The STIHL Black Work Glasses feature a sleek look that doesn’t skimp on protection or comfort. They feature scratch-resistant polycarbonate lenses and flexible, ventilated, straight-back temples. The tips of the temples are rubber to help keep them in place while the head is in motion. These protective glasses also block out 99.9% of the sun’s harmful UV rays, making them a great addition to your next outdoor project. Shown with Black Frame / Grey Lens. Available lens colors: Blue Mirror, Grey, Silver Mirror.
-
-
-
SPECIAL OFFER
STIHL Pro Mark™ Dynamic Protective Gloves
Power up any STIHL product while wearing STIHL Pro Mark™ Dynamic Gloves. Featuring multiple layers of cut-retardant materials – Avertic™ Pro and Dyneema fabrics by Engtex® – these gloves will help deliver the protection you need while operating your STIHL chainsaw. The palm and inner fingers are made of full-grain tanned leather, so you can work with comfort without sacrificing a firm hold. Accented with an orange rip-stop nylon backing, these dynamic gloves offer style and professional-grade protection. The STIHL Pro Mark™ Dynamic Gloves are water repellant, breathable and feature a Velcro wrist closure to help keep wood chips, snow, ice and other debris from getting inside.
-
