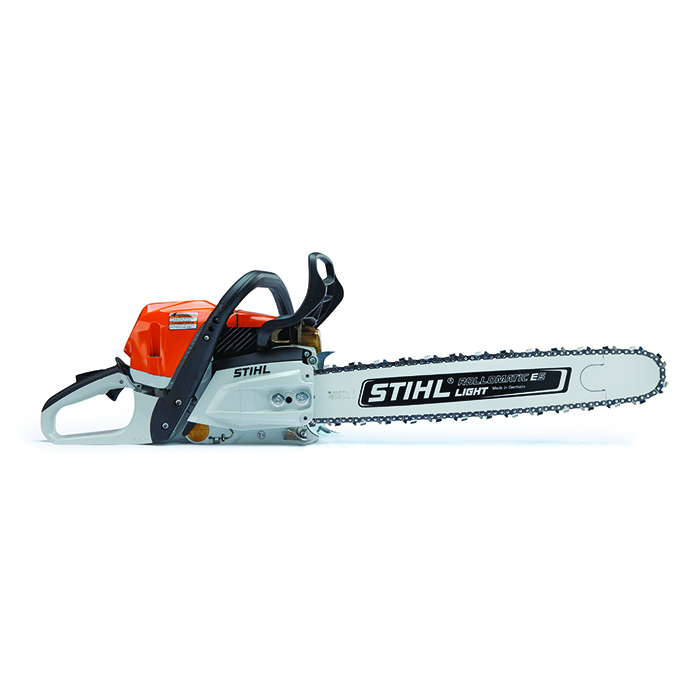

MS 400 C-M
World’s first powerful professional chainsaw with a lightweight magnesium piston.
Designed for the most demanding tree care and forestry professionals, the STIHL MS 400 C-M is built with STIHL M-Tronic™ engine technology to deliver low-emission, fuel-efficient performance even under changing conditions. Unlike its aluminum piston-equipped counterparts, the advanced magnesium piston in the MS 400 C-M provides greater displacement, power and torque without additional weight. A long-life HD2 air filter means you simply clean it instead of replacing it, while a pre-separation system removes large debris before it even gets to the air filter, increasing run time between cleanings.
| MS 400 C-M Specifications - Professional Use | |
| POWER SOURCE | Gas |
| POWERHEAD WEIGHT | 12.8 lbs. |
| GUIDE BAR LENGTH (Recommended) | 20 in. |
| OILOMATIC® CHAIN | 3/8" RS3 |
| CHAIN OIL CAPACITY | 11 oz. |
| ENGINE POWER | 5.4 bhp |
| FUEL CAPACITY | 20.3 oz. |
| DISPLACEMENT | 66.8 cc |
| Note: STIHL recommends #3624(33 RS3 72) OILOMATIC® Saw Chain and 20” 3003 008 8921 Ematic™ guide bar combination. Compatible guide bar ranges: 16" to 25" | |
Important Information
IMPORTANT SAFETY INFORMATION
The occurrence called “kickback” can cause serious
or fatal injury. Always read the instruction manual carefully before
using your saw. STIHL uses a green and yellow color-coding
system to help you select a powerhead, bar and chain combination
that complies with the kickback requirements of ANSI
Standard B175.1 (gasoline-powered saws) and §30 of UL 1662/
ANSI Standard B175.1 (electric chainsaws). Ask your STIHL
dealer about safe operating procedures and the advantages of
the STIHL Quickstop® chain brake, STIHL Quickstop® Plus additional chain braking feature, STIHL reduced kickback bars and STIHL low-kickback
saw chains.
STIHL recommends the use of green reduced kickback bars and green low kickback chains on all STIHL chainsaws.
* The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
Model Features
-
Decompression Valve
The decompression valve, also referred to as 'deco' or 'deco valve', vents compression in the cylinder for easier starting. The decompression valve temporarily reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope. It is opened manually and closes automatically as soon as the engine fires. -
Winter/Summer Shutter
The Winter/Summer Shutter allows the carburetor to operate at optimum temperature year-round and helps to prevent carburetor icing when working below 50°F (10°C). -
Anti-Vibration System
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience. -
Adjustable Automatic Oiler
The Adjustable Automatic Oiler allows the user to adjust the lubricant of the guide bar and saw chain for different bar lengths and cutting conditions. -
Side-Access Chain Tensioner
The side-access chain tensioner makes it much more convenient for the user to adjust the saw chain with a bar wrench as opposed to the typical location of the guide bar adjustment screw. -
Pre-Separation Air Filtration System
This time-saving technology boosts the efficiency of the engine’s filter system, doubling the time between air filter cleanings. Air drawn into the engine is first separated via centrifugal force, ejecting the heavier dirt particles before being routed to the air filter. This pre-separation means less dirt to be captured by the air filter, resulting in less frequent cleaning and maintenance. -
STIHL ElastoStart™
The ElastoStart™ starter handle is an exclusive feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out. -
Fuel and oil caps with retainers
The fuel and oil cap retainers keep the caps attached to the unit for added convenience. -
STIHL M-Tronic™
This product features M-Tronic™ (M) - a new generation of Intelligent Engine Management that eliminates the low and high speed carburetor adjustment screws, compensates for dirty air filter and changes in elevation and fuel quality for optimum engine power at all times.
See it in action! -
Ematic™ Lubrication System
The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%. -
STIHL Quickstop®
STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
See it in action! -
Master Control Lever™
The Master Control Lever™ is an easy to use single lever, operating the choke, starting throttle lock and on-off switch. The operator must pull the throttle trigger before moving the Master Control Lever™ to the choke position. -
Magnesium Alloy Piston
The magnesium alloy piston is lighter in weight than equivalent size aluminum alloy pistons. -
Excellent power-to-weight ratio (12.8 lbs./5.4 bhp)
Thanks to innovative engineering and construction, the MS 400 C-M delivers an excellent power-to-weight ratio. -
Modern Design
The modern design of the MS 400 C-M is an aesthetic reflection of the power and innovation this saw delivers. -
Lightweight (12.8 lbs.)
The MS 400 C-M professional chainsaw is designed to deliver lightweight performance and jobsite productivity.
