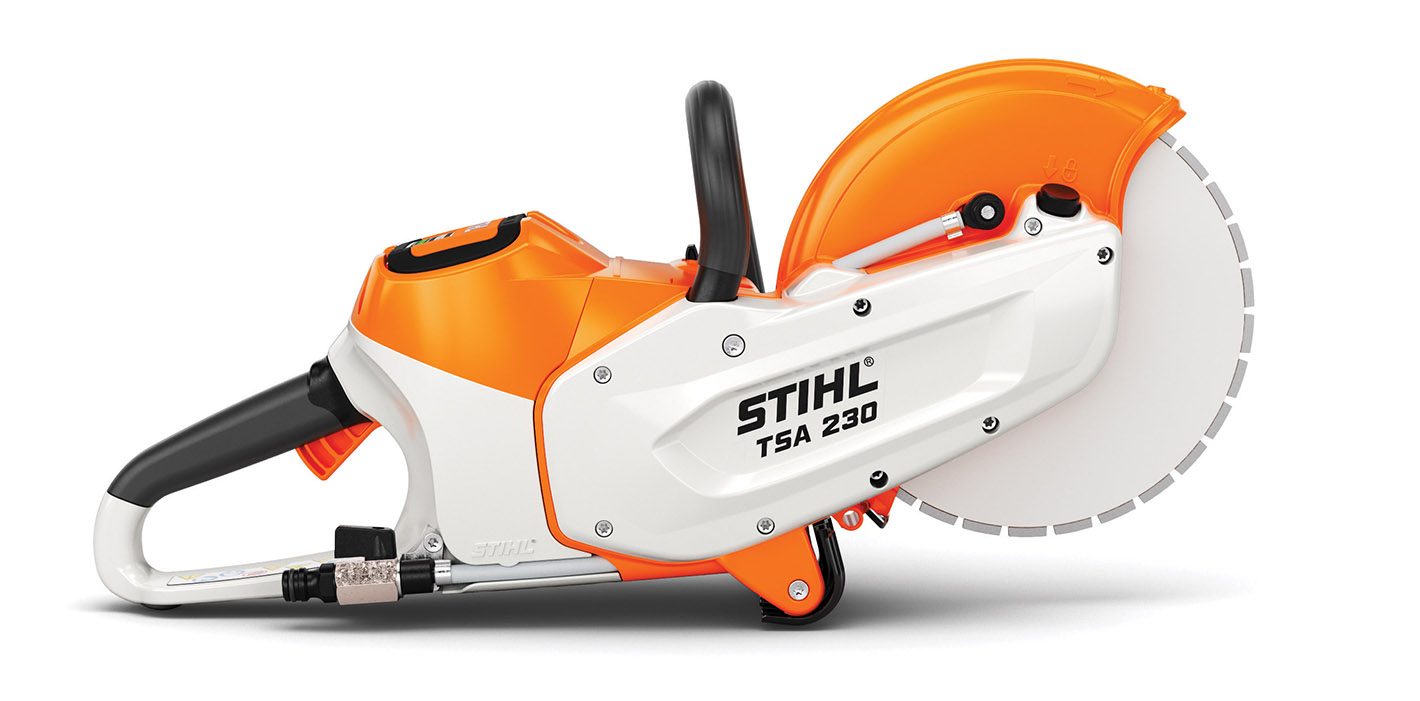

TSA 230
Commercial grade. The world's first Lithium-Ion-powered cut-off machine. Lightweight, easy to handle, and gets the job done fast.

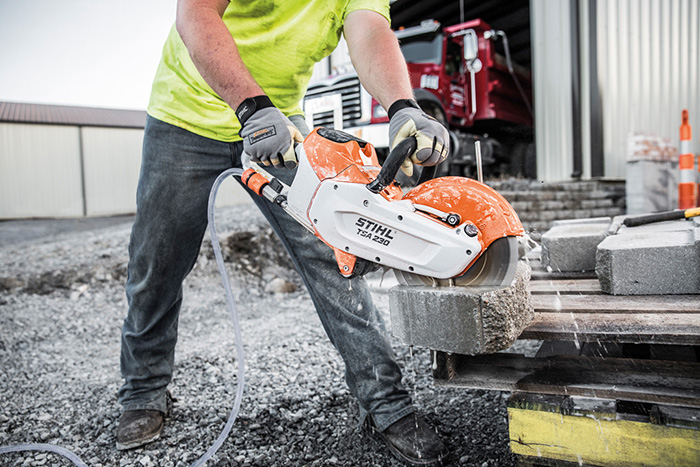

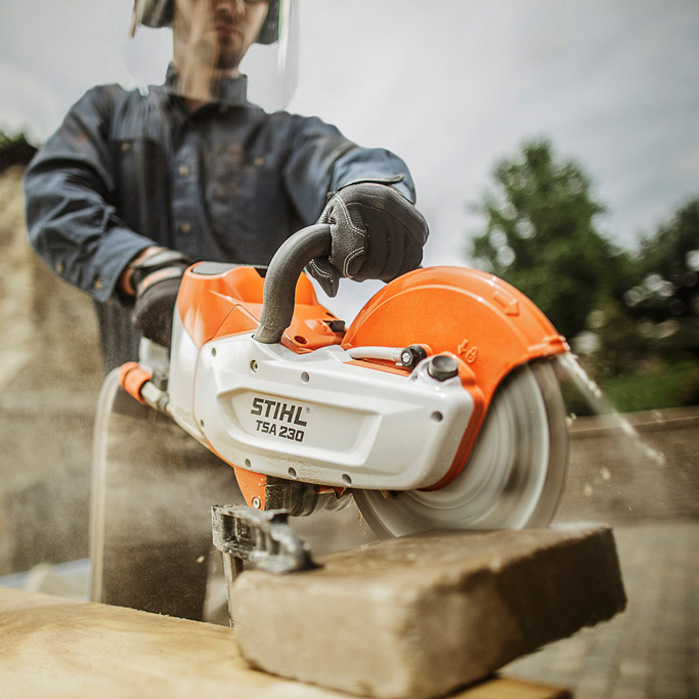

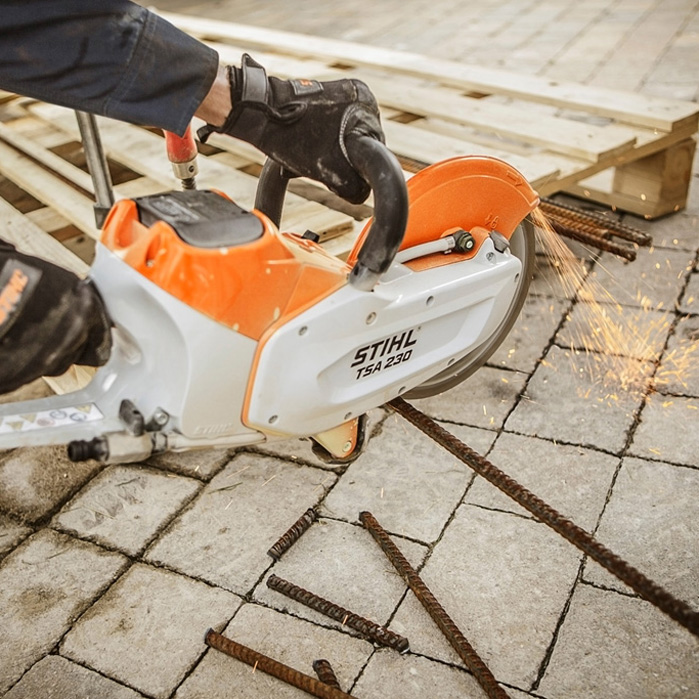

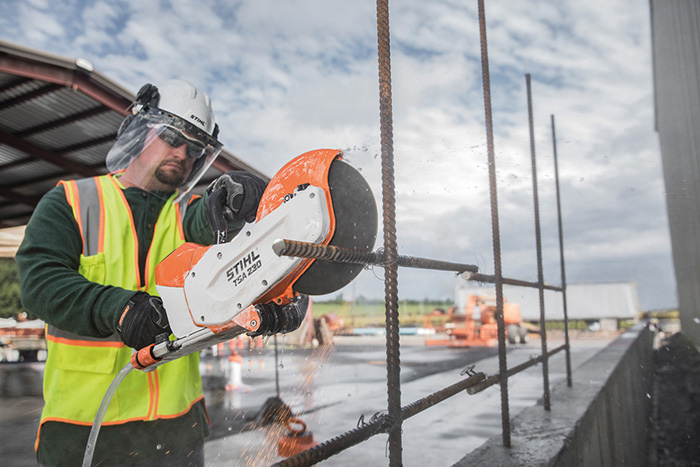

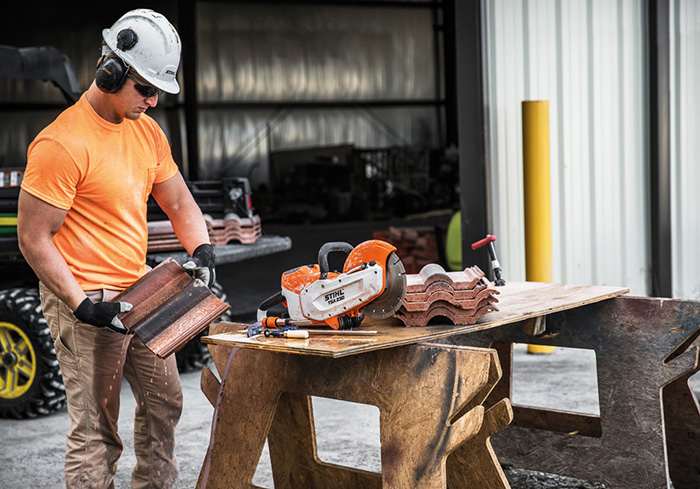

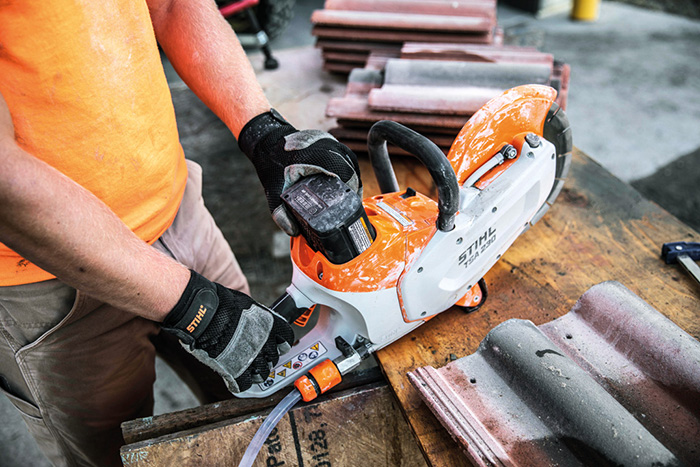

STIHL introduces another world’s first – a cut-off machine powered by 36-volt Lithium-Ion battery technology. The TSA 230 STIHL Cutquik® cut-off machine starts instantly and changes the game for the jobsite, delivering maneuverability and solid cutting performance in a lightweight, compact package that can be used indoors. Its onboard water control helps suppress dust while a toolless wheel lock prevents wheel rotation when removing the wheel attachment bolt. And because it is battery powered, there is no air filter to maintain. The TSA 230 even provides great value – priced below its gasoline-powered counterpart. Groundbreaking innovation, grounded in quality engineering.
Run time may vary based on battery type, charge level and capacity, model, operating style and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.
See the TSA in action - Watch Video!
View Our Usage Chart
| TSA 230 Specifications - Professional Use | |
| POWER SOURCE | Battery |
| WEIGHT | 8.6 lbs. |
| MAXIMUM CUTTING DEPTH | 2.75 in. |
| MAXIMUM WHEEL SIZE | 9 in. |
| ARBOR SIZE | .875 in. |

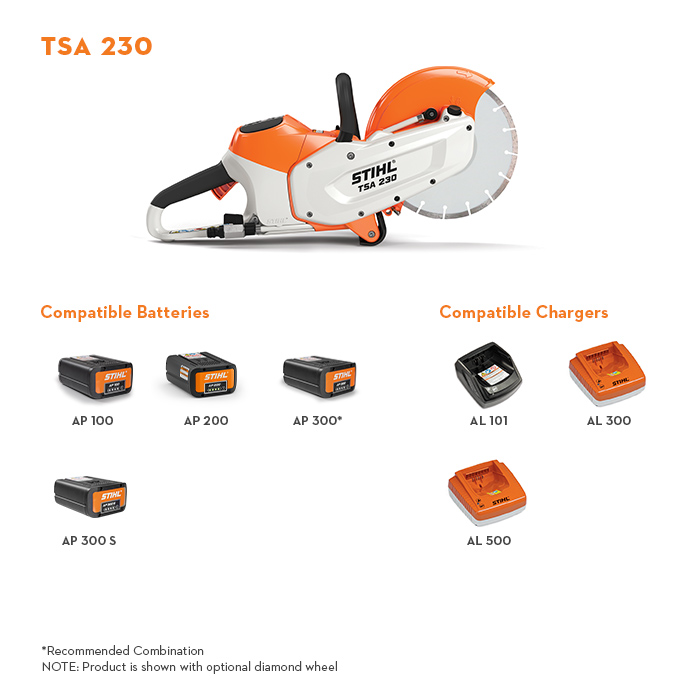

| BATTERY SYSTEM | AP Series |
| RUN TIME (w/ AP 200) Up to | 14 Minutes |
| RUN TIME (w/ AP 100) Up to | 7 Minutes |
| RUN TIME (w/ AP 300 S) Up to | 22 Minutes |
| RUN TIME (w/ AP 300) Up to | 18 Minutes |
| VOLTAGE | 36V |
| Note: This product is for professional use only. The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut. | |
Important Information
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
WARNING! Never use carbide-tipped, wood cutting or circular saw blades on cut-off machines. They can cause severe personal injury or death from reactive forces, blade contact or thrown tips. Never cut wood of any type.
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
Model Features
-
Sealed control unit
Sealed control unit for improved water resistance while wet cutting. -
Magnesium Guard
The cutting wheel guard is made from lightweight and durable magnesium to improve maneuverability. -
Spindle Locking Mechanism
The spindle locking mechanism allows the user to lock the wheel rotation for easier removal of the wheel. -
Water Connection
Water connection with shut-off valve and quick connector. -
STIHL Electric Motor
Maintenance-free brushless DC motor features low noise levels and reduced vibration. -
Sealed Belt Drive
Maintenance-free sealed belt drive. -
Electronic Coaster Brake
Stops wheel after use. -
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards. -
Lightweight Portability
Great for maneuverability and extended use.
We Also Suggest
-
-
SPECIAL OFFER
AL 300 Rapid Battery Charger
Your advanced STIHL battery-powered equipment deserves an equally advanced charger. The STIHL AL 300 rapid battery charger fits that bill perfectly. Designed to charge your STIHL Lithium-Ion batteries quickly so you can power through your lawn care tasks. It features an onboard cooling fan and bright LED display to indicate current charge level. This smart charger even switches off automatically once your battery is fully charged.
View Our Usage Chart
-
-
-
SPECIAL OFFER

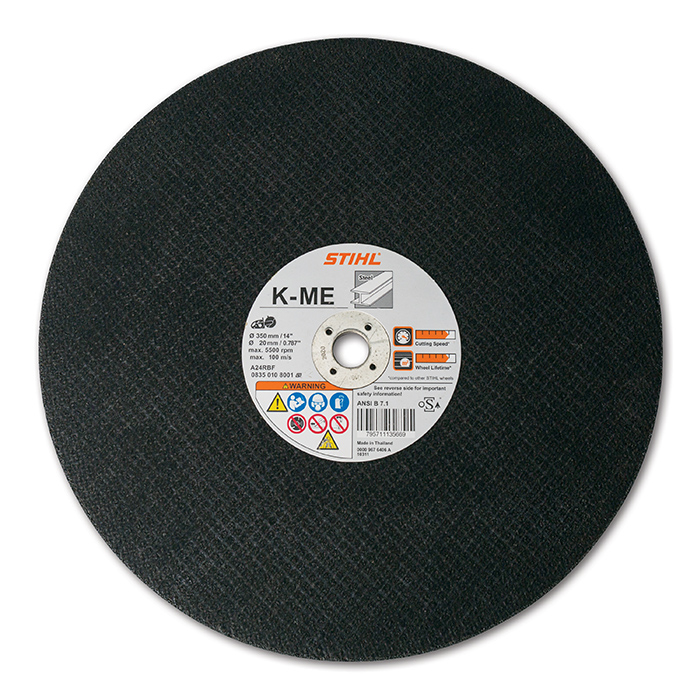

K-ME - Abrasive Wheel - General Purpose Metal
The General Purpose Metal abrasive wheel is ideal for ductile iron, steel and other construction site metal needs. Specially engineered compositions and specific degrees of bond hardness maximize the wheel’s cutting life.
A variety of diameters and arbor sizes are available. See dealer for details.
-
-
-
SPECIAL OFFER
AL 500 High-Speed Battery Charger
Part of the STIHL Lithium-Ion Battery System, the AL 500 delivers the fastest charging time for all STIHL Lithium-Ion batteries. Now, you can spend less time charging and complete your projects faster. Get the most out of your STIHL system – get the AL 500 high-speed charger!
View Our Usage Chart
-
For Your Safety
-
-
SPECIAL OFFER

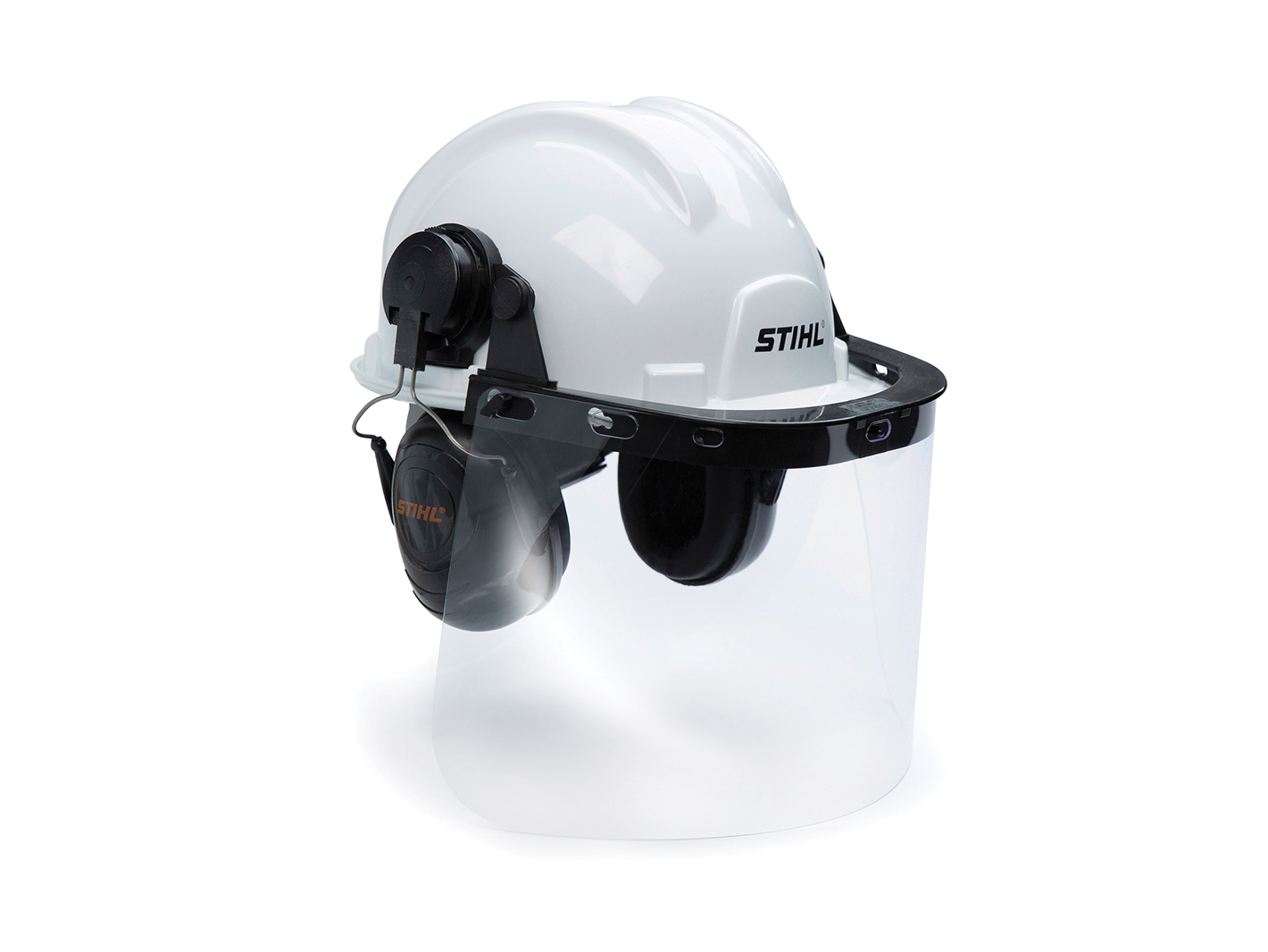

Construction Hard Hat System
