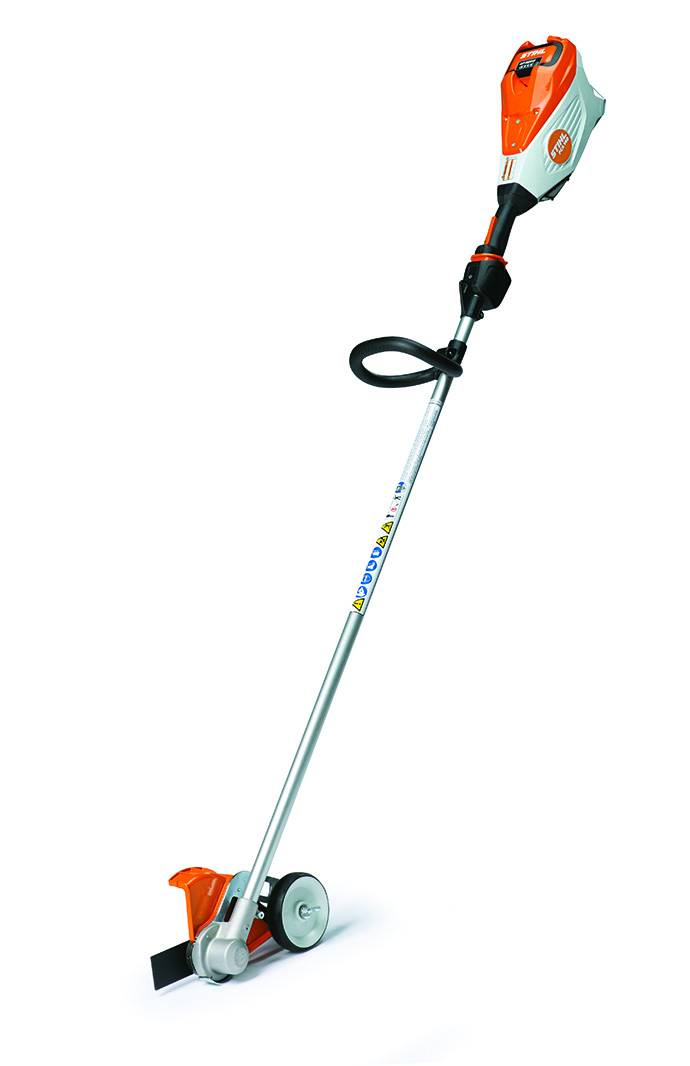

FCA 140
Professional straight-shaft edger perfect for edging around residential or commercial sites.
Enjoy the flexibility of professional-grade battery power without sacrificing performance with the STIHL FCA 140 edger. With a straight-shaft, a variable-speed
trigger and an adjustable depth wheel, you can control the speed you’ll need to cut through packed soil or create completely new edges. This
weather resistant reliable edger is built with high-quality components like an onboard metal air filter, brushless motor and the same shaft and gearbox as
the gas-powered FC 96. With a ZEE certification from the California Air Resources Board, the eco-friendly and quiet FCA 140 is a great option when
working in noise-sensitive environments. As a pro-grade battery product, the FCA 140 is sure to be a welcome addition to your professional fleet of STIHL
products.
View Our Usage Chart
| FCA 140 Specifications - Professional Use | |
| POWER SOURCE | Battery |
| WEIGHT | 12.6 lbs. |
| WEIGHT (w/ AP 300 S) | 16.6 lbs. |
| SHAFT DESIGN | Straight |
| BLADE SPEED | 4,800 rpm |
| GEAR RATIO | 1:2.09 |
| BATTERY SYSTEM | AP Series |
| RUN TIME (w/ AP 300 S) Up to | 45 min. |
| VOLTAGE | 36V |
| Note: The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut. | |
Important Information
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
Model Features
-
Onboard metal air filter
The durable metal air filter allows for cool, clean air to be circulated around the motor and electronics. -
“Line of Sight Marking”
A notch on top of the edger’s deflector helps guide the user during use, helping to create cleaner, more precise cuts. -
"Open" Deflector Design
The professional “open” deflector design helps minimize clogging, allowing for more efficient cutting. -
Utilizes the same straight shaft and gearbox as seen on the gas-powered FC 96 edger.
The same durable straight shaft and gearbox to that found on the FC 96 edger. -
High Torque
With its high torque, the FCA 140 can easily cut through packed soil, making it a great option for use on uncut or unmaintained edges. -
Battery Indicator Lights
This battery is equipped with built-in indicator lights, showing the battery status and remaining level of charge. -
Onboard battery slot
Features an onboard battery slot to easily allow use with an onboard cartridge style battery or backpack battery. -
Assembled in the USA
Batteries and chargers sourced internationally. -
Zero Emission Equipment (ZEE) Certified
ZEE certification indicates professional battery power and environmental responsibility. -
Weather-Resistant Design
The weather-resistant design gives users the advantages of a powerful tool with a sturdy construction. -
Variable-Speed Trigger
Variable-speed trigger allows precise control for each task. -
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards. -
Adjustable depth wheel
The adjustable depth wheel allows user to control the depth of the cut. -
STIHL Electric Motor
Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.
We Also Suggest
-
-
SPECIAL OFFER
AL 500 High-Speed Battery Charger
Part of the STIHL Lithium-Ion Battery System, the AL 500 delivers the fastest charging time for all STIHL Lithium-Ion batteries. Now, you can spend less time charging and complete your projects faster. Get the most out of your STIHL system – get the AL 500 high-speed charger!
View Our Usage Chart
-
-
-
SPECIAL OFFER

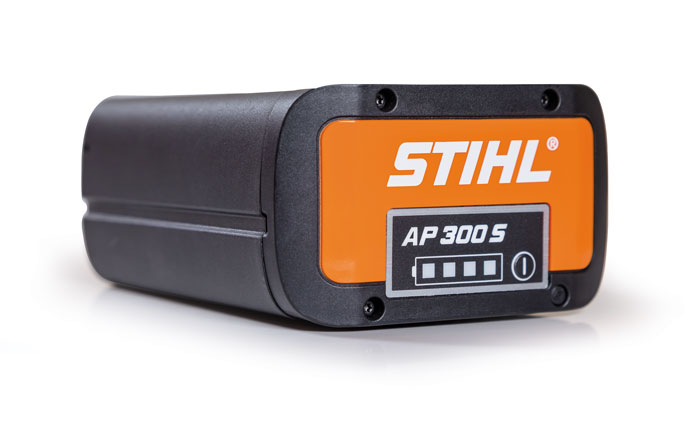

AP 300 S Lithium-Ion Battery
Greater battery capacity to cover your needs for the bigger jobs, is offered by the AP 300 S Lithium-Ion Battery from STIHL. The AP 300 S features a 25 percent increase in battery capacity over the AP 300, equaling up to 25 percent longer run time, as well as an enhanced power-to-weight ratio and a weight of only 3.9 pounds. Water resistant*, the AP 300 S is compatible with a wide range of tools, including extended-reach hedge trimmers, pole pruners, chainsaws and blowers. Knock out tasks like storm cleanup faster with the professional-level performance of the AP 300 S battery from STIHL.
*When paired with tool suitable for wet or rainy conditions. Tools that are suitable for rainy or wet conditions should be dried after use.
View Our Usage Chart
-
-
-
SPECIAL OFFER

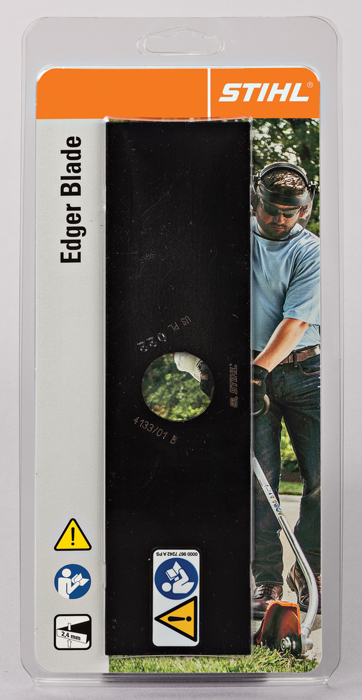

Edger Blade
These replacement edger blades are 8” long and are available in the standard 2.4 mm thickness and the heavy duty 3.8 mm thickness.
-
For Your Safety
-
-
SPECIAL OFFER
Brush Shield Protector
Cut through your day with the protection and comfort of the STIHL Brush Shield Protector. Developed for users of clearing saws, trimmers and brushcutters, the shield offers face and hearing protection in a lightweight package. The epoxy-coated steel full-face screen helps protect you from flying debris while comfortable, adjustable hearing protectors help reduce loud tool and engine noise.
Noise Reduction Rating (NRR) of 25 dB(A)
NOTE: Goggles or protective glasses meeting ANSI Standard Z87.1 must be worn under face screen and shield for primary eye protection.
-
-
-
SPECIAL OFFER

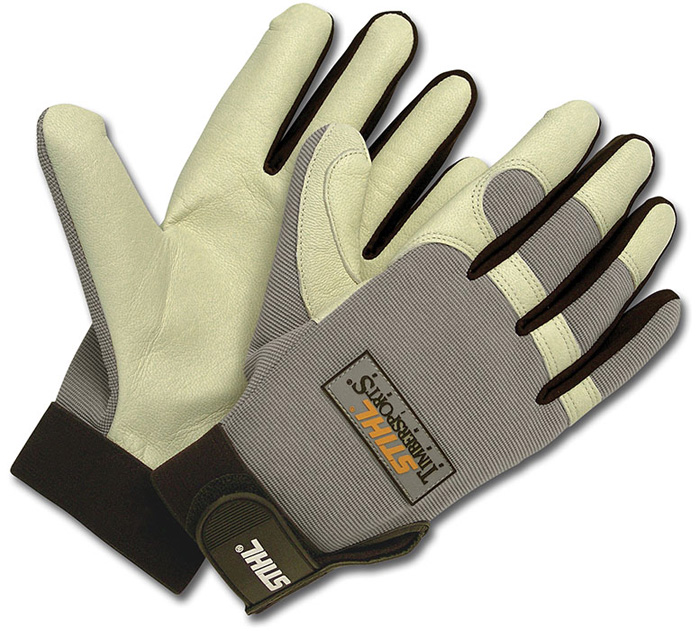

STIHL TIMBERSPORTS® Series Gloves
When professional competitors take on other leaders in the field, they use STIHL TIMBERSPORTS® Series Gloves. Made from premium goat-skin leather, these gloves provide exceptional comfort. Their sport-styled design enhances work control while an adjustable wrist closure provides a secure fit.
Materials: Premium goat skin leather palms and fingers, stitched fabric backing and elastic cuff
Available sizes: M, L, XL
-
-
-
SPECIAL OFFER
Reflective Safety Vest
The Reflective Safety Vest from STIHL meets the standard for use along highways and other high-traffic areas. It features a longer tail in back for maximum reflective exposure – great for workers using backpack blowers. Two front pockets and one chest pocket provide great utility for carrying job necessities.
Meets ANSI/ISEA 107-2004 standard
Available color: High-Visibility Yellow
Available sizes: M, L, XL, XXL
-
-
-
SPECIAL OFFER

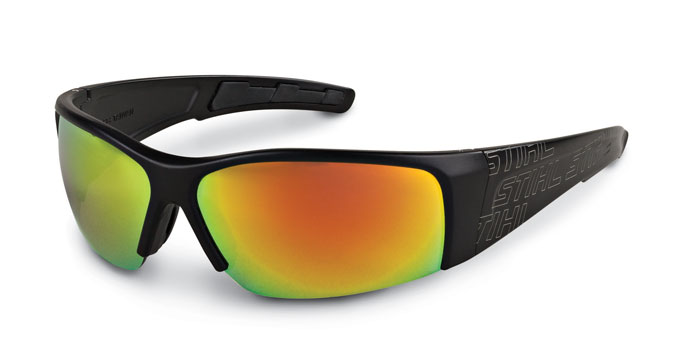

Black Wrap Glasses
Stay cool. Look cooler. The Black Wrap Protective Glasses from STIHL feature a ventilated nosepiece designed for better heat dissipation and less lens fogging. The polycarbonate lenses block out 99% of the sun’s harmful UV rays and are available in multiple color options. The black-wrap half frame includes rubber pads to prevent slippage while delivering sleek style.
Meets ANSI Z87.1 Standard
Available lens colors: Silver Mirror, Gold Mirror, Smoke
-
