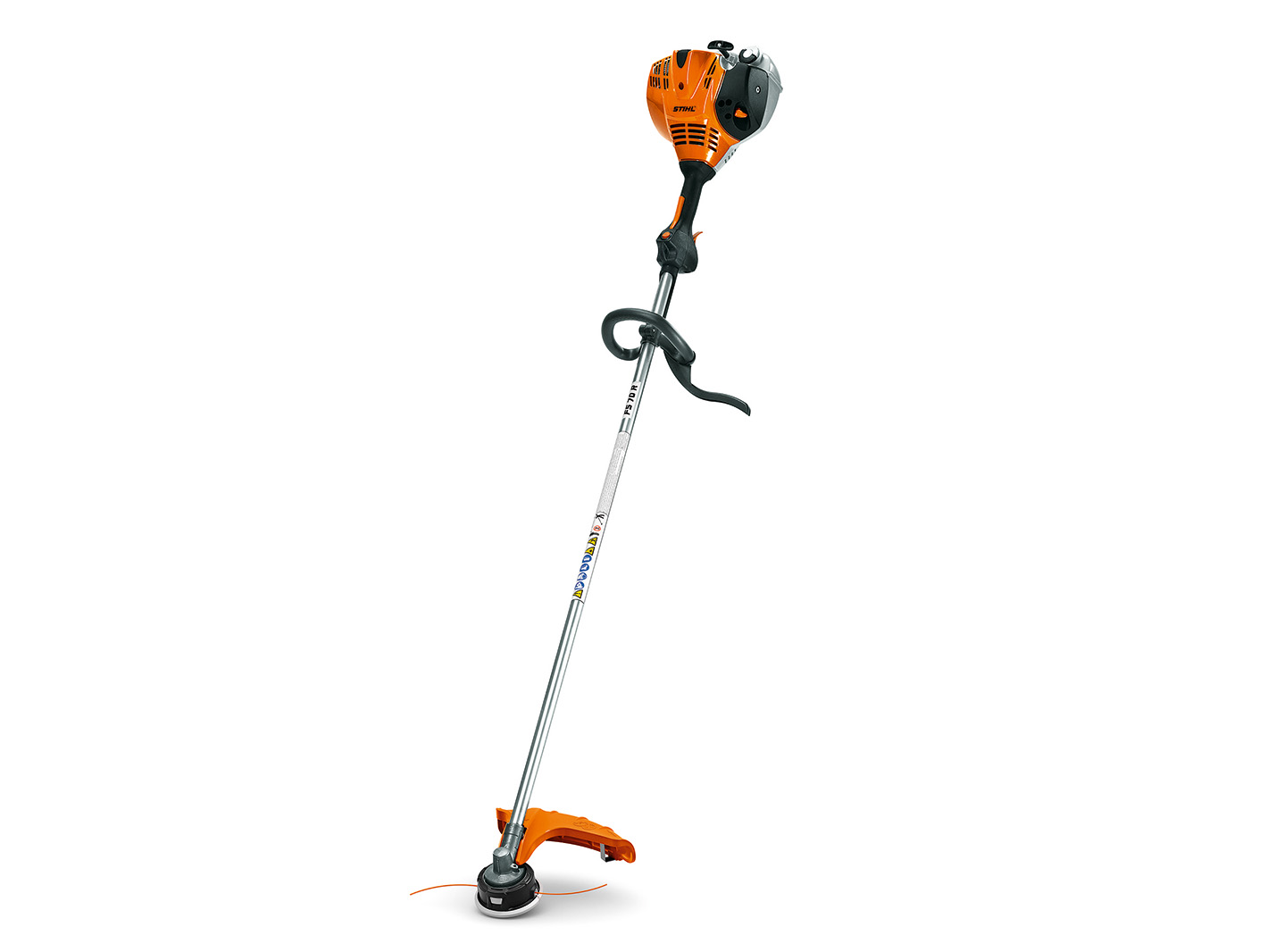

FS 70 R
Straight shaft trimmer for home, farm, or professional use.
As a professional, your time is valuable. The STIHL FS 70 R grass trimmer understands that. It features a powerful and fuel-efficient engine, which means longer run times and fewer refuels. The FS 70 R is also powerful (more powerful than the FS 56 RC-E) and makes quick work of your daily landscaping tasks. Need more line? Just tap the cutting head on the ground and watch as its AutoCut® head automatically feeds out new line. This trimmer is also built to last, featuring a sturdy cable drive shaft, a high-durability, forged connecting rod, and a four-bearing gearbox. As a bonus, it is all backed by a rock-solid, two-year limited warranty.
| FS 70 R Specifications - Professional Use | |
| POWER SOURCE | Gas |
| WEIGHT | 10.6 lbs. |
| CUTTING WIDTH | 16.5 in. |
| ENGINE POWER | 1.2 bhp. |
| FUEL CAPACITY | 11.5 oz. |
| DISPLACEMENT | 27.2 cc. |
| Note: Weight displayed does not include cutting attachment or deflector. | |
Important Information
WARNING! Improper use of any trimmer/brushcutter can cause serious or fatal injury. Read, understand and follow all safety instructions in your instruction manual. To reduce the risk of injury from blade contact, circular saw blades may be used on FS brushcutters that have a limitstop, a bicycle handle and double shoulder harness and not on FS brushcutters with a "J" handle or loop handle. Other rigid blades may be used on FS brushcutters having a bicycle handle, a "J" handle or a loop handle equipped with a barrier bar. To reduce the risk of eye injury always wear proper eye protection. Always use the appropriate deflector for the type of cutting attachment, as explained in your instruction manual.
Note: STIHL recommends use of fuel with no more than 10% Ethanol content. Using fuel with greater than 10% Ethanol content may cause damage to your equipment and may void your STIHL warranty.
WARNING! Improper use of any power tool may cause serious
or fatal injury. Read, understand and follow carefully the operating
and safety instructions in your instruction manual before using such products.
STIHL products sold through U.S. STIHL Dealers are for distribution in the United States only.
Model Features
-
Cutting Heads & Blades Selection Chart
Need help selecting a cutting head or blade for your STIHL trimmer or brushcutter?
Click here to view the Cutting Heads & Blades Selection Chart (PDF Format). -
Made in America
A majority of STIHL products sold in America are made in America of U.S. and global materials. -
Multi-Function Control Handle
Having easy access to all of the controls on one comfortable handle makes it easy to complete tasks so the operator’s hand never has to leave the handle. -
Upright Translucent Fuel Tank
Allows operator to easily check fuel level before starting work. Upright position makes it easier to refill. -
Purge Pump Primer
By pressing the bulb, this small fuel pump delivers fuel to the carburetor, reducing the number of starting pulls needed after an extended break between uses. -
Simplified Starting Procedure
To get started, simply pump the fuel primer, set the choke and pull the starter cord. The built-in stop switch allows the user to turn off the engine with a simple press of the button. When the engine is off, the throttle lock automatically returns to the “start” setting. Your power tool will be ready to be started when you’re ready to get back to work.
See it in action! -
Shoulder Strap / Carrying System
Using a shoulder strap or carrying system helps distribute the weight of the equipment for increased operator comfort and improved maneuverability. -
Throttle Trigger Interlock
Must be depressed before the trigger can be activated. -
Protected Choke Lever/Knob
Helps prevent damage. -
Air Filter Cover
Easily removed for fast and easy filter cleaning or replacement. -
Protected or Enclosed Control Cables
Eliminate dangling and loose wires. -
Heavy-Duty Steel-On-Steel Clutch
Centrifugal clutch is designed to reduce slippage. -
Protected Spark Plug
Protected yet easy to change. -
Protected Spark Arrestor Muffler
Has large baffles which reduce noise level and contains a screen designed to reduce the emission of sparks. -
Fully Lined Drive Shaft
Provides smooth operation and less vibration. -
High Tech Polymer Housing
Housings are lightweight, withstand greater impact and are corrosion-resistant. -
Adjustable front handle
Adjusts for comfort. -
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards. -
Loop Handle (R)
Loop handle grass trimmers and brushcutters are ideal for trimming between bushes and shrubs and other areas where space is limited.
Optional Accessories
-
Trimmer Heads & Blades
Many trimmer heads and blades are available. Find out which ones to use with this model in this chart. -
Trimmer Line
There's high-performance STIHL trimmer line for every operating condition. -
Straps and Harnesses
They distribute the load from your hands to your shoulders. They also help reduce operator fatigue and make it easier to use trimmers, brushcutters and clearing saws for extended periods.
